TH-310-2G Industrial Ethernet Switch
TH-310-2G is a new-generation industrial Ethernet switch that provides stable, reliable Ethernet transmission with high-quality design and reliability. It features 8 10/100Base-TX ports and 2 1000Mbps combo ports, as well as redundant dual power supply input (12~36VDC) for critical applications requiring always-on connections. The switch is capable of operating in a standard temperature range of -40 to 75°C and supports DIN rail and wall mounting with IP40 protection, making it suitable for harsh environments.
● 8×10/100ase-TX RJ45 ports and 2x 1000Mbps Combo Ports
● Support 1Mbit packet buffer
● Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x
● Support redundant dual power input 12~36VDC
● -40~75°C operation temperature for harsh environment
● IP40 Aluminum case, no fan design
● Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-310-2G | Industrial unmanaged switch with 8×10/100Base-TX RJ45 ports and 2x1000MCombo Ports, dual power input voltage 12～36VDC |
| TH-310-2G4F | Industrial unmanaged switch with 4×10/100Base-TX RJ45 ports, 4x100BASE-FXFiber ports(SC/ST/FC) and 2x1000M Combo Ports, dual power input voltage 12～ 36VDC |
| Ethernet Interface | |
| Ports | 8×10/100BASE-TX and 2x 1000Mbps Combo Ports |
| Power input terminal | Four-pin terminal with 5.08mm pitch |
| Standards | IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and100 BaseFX
IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Packet Buffer Size | 3M |
| Maximum Packet Length | 10K |
| MAC Address Table | 2K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time < 7μs |
| Backplane bandwidth | 8.8Gbps |
| Power | |
| Power Input | Dual power input 12-36VDC |
| Power consumption | Full Load<10W |
| Physical Characteristics | |
| Housing | Aluminum case |

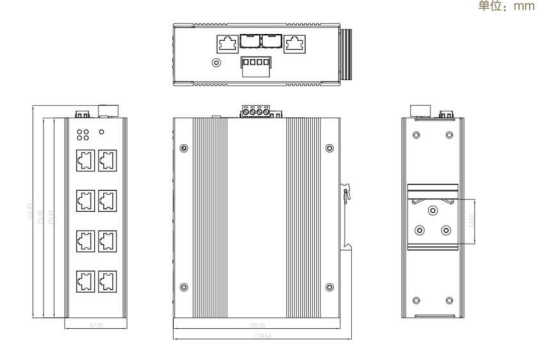

| Dimensions | 151mm x 134mm x 47mm (L x W x H) |
| Weight | 450g |
| Installation Mode | DIN Rail and Wall Mounting |
| Working Environment | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Warranty | |
| MTBF | 500000 hours |
| Defects Liability Period | 5 years |
| Certification Standard | FCC Part15 Class A IEC 61000-4-2（ ESD）： Level 4CE-EMC/LVD IEC 61000-4-3（ RS）： Level 4ROSH IEC 61000-4-2（ EFT）： Level 4
IEC 60068-2-27（Shock） IEC 61000-4-2（ Surge）：Level 4 IEC 60068-2-6（Vibration） IEC 61000-4-2（ CS）： Level 3 IEC 60068-2-32（Free fall） IEC 61000-4-2（ PFMP）：Level 5 |
