TH-4G Series Industrial Ethernet Switch
TH-4G Series are Gigabit Industrial Ethernet Switch is designed for use in harsh industrial environments, such as factories, warehouses, and other industrial settings.
The switch is equipped with robust IP40 protection, which means it is resistant to dust and dirt, making it ideal for use in industrial environments.
The switch also features a fan-less design, which reduces the risk of overheating and allows it to operate quietly, making it perfect for use in environments where noise is a concern. And some type equipped with SFP (Small Form-factor Pluggable) slots, which enables users to connect the switch to fiber optic networks.
This allows for both long-distance communications and noise-immune high-speed data transfer.
● Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
● Auto-MDI/MDI-X detection and negotiation in half-duplex/full-duplex modes for 10/100Base-TX RJ-45 port
● Features Store-and-Forward mode with wire-speed filtering and forwarding rates
● Supports packet size of up to 2K bytes
● Robust IP40 protection, fan-less design, high/low temperature resistance -30℃~ +75℃
● Wide power supply input DC12V-58V redundant
● CSMA/CD protocol
● Automatic source address learning and aging
| P/N | Description |
| TH-4G0005 | Unmanaged Industrial Gigabit Switch, 5×10/100/1000M RJ45 Port |
| TH-4G0008 | Unmanaged Industrial Gigabit Switch, 8×10/100/1000M RJ45 Port |
| TH-4G0104 | Unmanaged Industrial Gigabit Switch, 1x1000Mbps SFP Port, 4×10/100/1000M RJ45 Port |
| TH-4G0108 | Unmanaged Industrial Gigabit Switch, 1x1000Mbps SFP Port, 8×10/100/1000M RJ45 Port |
| TH-4G0202 | Unmanaged Industrial Gigabit Switch, 2x1000Mbps SFP Port, 2×10/100/1000M RJ45 Port |
| TH-4G0204 | Unmanaged Industrial Gigabit Switch, 2x1000Mbps SFP Port, 4×10/100/1000M RJ45 Port |
| TH-4G0208 | Unmanaged Industrial Gigabit Switch, 2x1000Mbps SFP Port, 8×10/100/1000M RJ45 Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, Link/ACT LED |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Hybrid Topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input Voltage | Redundant DC12-58V input |
| Total Power Consumption | <5W |
| Layer 2 Switching | |
| Switching Capacity | 14Gbps/20Gbps |
| Packet Forwarding Rate | 10.416Mpps/14.88Mpps |
| MAC Address Table | 2K/8K/16K |
| Buffer | 1M/2M |
| Forwarding Delay | <5us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| LFP | Support |
| Storm Control | Support |
| DIP Switch | |
| 1 LFP | LFP/ Remote PD Reset |
| 2 LGY | LEGACY (Standard & Non-standard PoE) |
| 3 VLAN | Port Isolation |
| 4 BSR | Storm Control Configuration |
| Environment | |
| Operating Temperature | -30℃~+75℃ |
| Storage Temperature | -30℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |

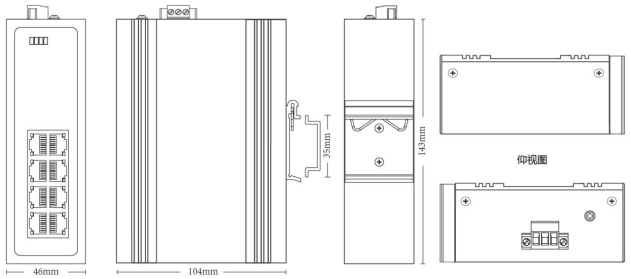

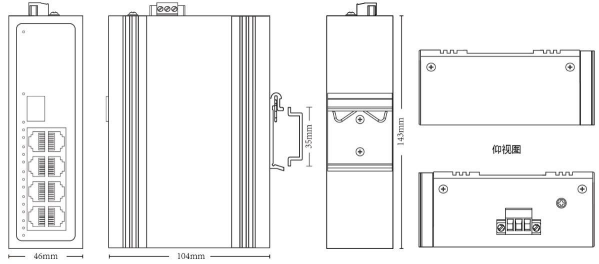

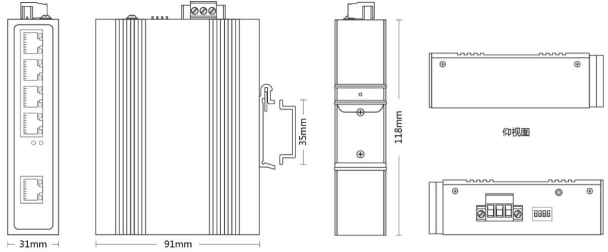

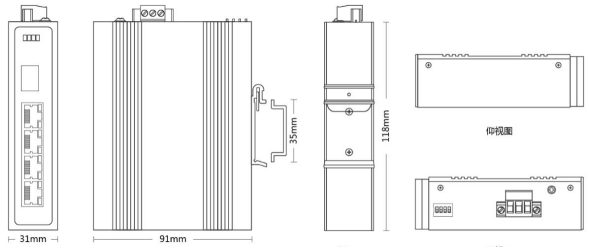

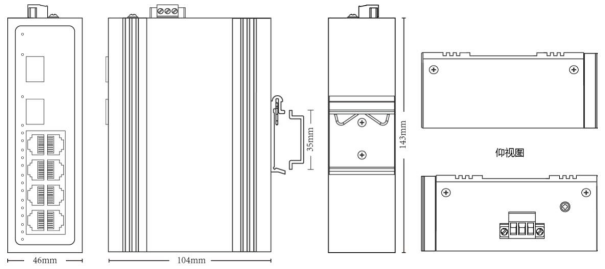

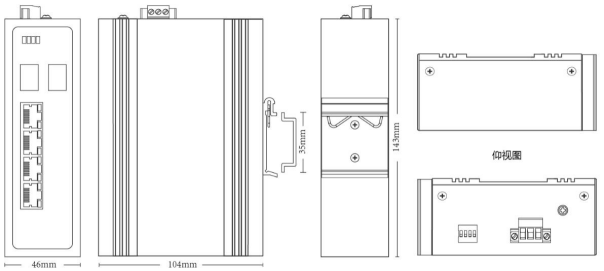

| Product Size | 118*91*31mm/143*104*46mm |
| Installation Method | Din-Rail |
| Net Weight | 0.36KGs/0.55KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |
