TH-4G Series Industrial Switch
The TH-4G Series Industrial Ethernet Gigabit PoE Switch is a high-performing switch that's perfect for SMBs deploying Power over Ethernet networks. Thanks to its fan-less and energy-saving design, this switch delivers power solutions that are both reliable and efficient.
This switch is built to excel in performance, making it perfect for businesses that demand fast and I/O-intensive data transfer. The TH-4G's compact size and convenient maintenance make it easy to manage, allowing you to focus on your business rather than managing your network.
Exceptional reliability is a hallmark of the TH-4G's design, making it perfect for uninterrupted industrial operation in harsh environments that range from -30℃ to +75℃. Whether you're setting up control cabinets in transportation, factory floors, outdoors, or other low or high-temperature environments, you can rely on this switch to withstand tough conditions and perform flawlessly.
But performance isn't the only thing that sets the TH-4G apart. This switch also offers unparalleled security features that protect your network and data from unauthorized access, giving you peace of mind in an increasingly digital world.
Overall, businesses can benefit from the TH-4G's unmatched performance, reliability, security features, and ease of management, making it the ideal choice for SMBs deploying Power over Ethernet networks.
● Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
● Auto- MDI/ MDI-X detection and negotiation in half-duplex/full-duplex modes for 10/ 100Base-TX RJ-45 port
● Features Store-and- Forward mode with wire-speed filtering and forwarding rates
● Supports packet size of up to 10K bytes
● Robust IP40 protection, fan-less design, high/low temperature resistance -30℃~ +75℃
● DC48V-58V input
● CSMA/CD protocol
● Automatic source address learning and aging
| P/N | Fixed Port |
| TH-4G0005P | 5*10/ 100/ 1000Mbps Ethernet Port (4xPoE) |
| TH-4G0008P | 8*10/ 100/ 1000Mbps Ethernet PoE Port |
| TH-4G0104P | 4*10/ 100/ 1000Mbps Ethernet PoE Port, 1*1000Mbps SFP Port |
| TH-4G0108P | 8*10/ 100/ 1000Mbps Ethernet PoE Port, 1*1000Mbps SFP Port |
| TH-4G0202P | 2*10/ 100/ 1000Mbps Ethernet PoE Port, 2*1000Mbps SFP Port |
| TH-4G0204P | 4*10/ 100/ 1000Mbps Ethernet PoE Port, 2*1000Mbps SFP Port |
| TH-4G0208P | 8*10/ 100/ 1000Mbps Ethernet PoE Port, 2*1000Mbps SFP Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, OPT, NMC, ALM |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Tree Topology | Support |
| PoE Support | |
| PoE Port | 1-4/1-8 |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Pin Assignment | 1, 2, 3, 6 |
| Input Voltage |
DC48-58V input |
| Total Power Consumption | <126W/<246W/<250W |
| Layer 2 Switching | |
| Switching Capacity | 10Gbps/14Gbps/26Gbps/36Gbps |
| Packet Forwarding Rate | 7.44Mpps/19.34Mpps/10.416Mpps/26.78Mpps |
| MAC Address Table | 8K/16K |
| Buffer | 1M/2M/12M |
| Forwarding Delay | <5us/<10us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| Port Isolation | Support |
| DIP Switch | |
| 1 I/R | Remote PD Reset |
| 2 VLAN | VLAN |
| 3 Q/I | Port Isolation |
| 4 F/P | VIP Power Supplying & QoS |
| Environment | |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product Size | 143*104*48mm |
| Installation Method | Din-Rail |
| Net Weight | 0.6KGs/0.7KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
| DIP | IEC 61000-4-11 Level 3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |

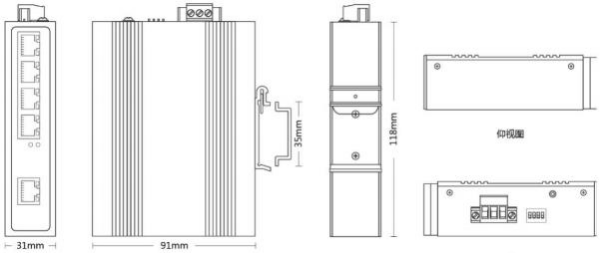

TH-4G0005P

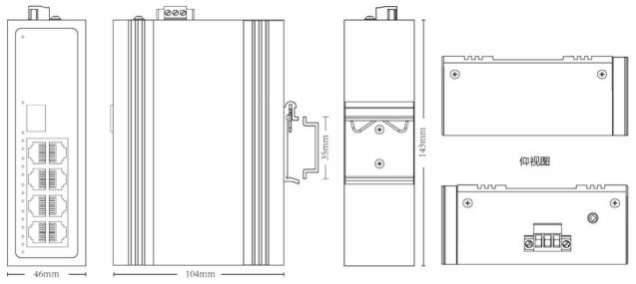

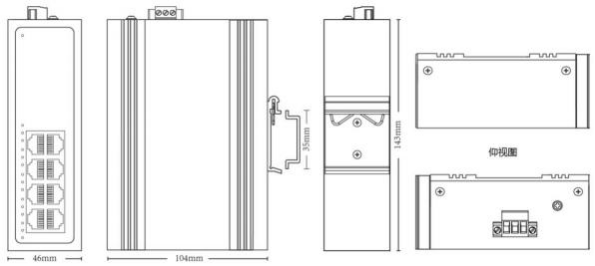

TH-4G0008P

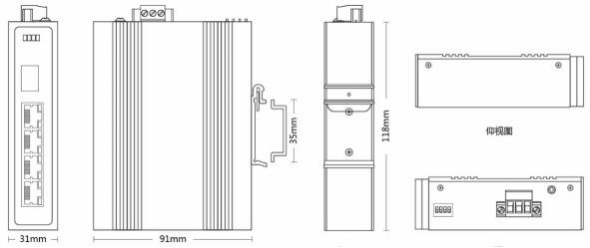

TH-4G0104P

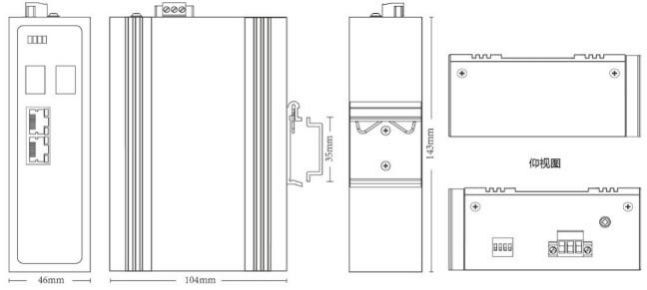

TH-4G0202P

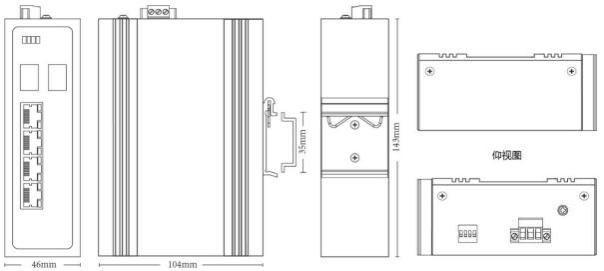

TH-4G0204P
