TH-6F Series Industrial Ethernet Switch
TH-6F Series Industrial Ethernet Switch has a compact and rugged design with IP40 protection, making it suitable for use in harsh industrial environments.
It comes with a fan-less design and supports a wide operating temperature range of -40°C to 75°C, ensuring stable operation even in extreme conditions.
It supports a range of advanced features such as Quality of Service (QoS), broadcast storm protection, and VLAN configuration.
These features ensure reliable and efficient network communication and help to optimize network performance.
● Complies with the IEEE 802.3, IEEE 802.3u
● Auto-MDI/MDI-X detection and negotiation in half/full-duplex modes for 10/100Base-TX RJ-45 port
● Features Store-and-Forward mode with wire-speed filtering and forwarding rates
● Supports packet size of up to 10K bytes
● Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃
● DC12V-58V input
● CSMA/CD protocol
● Automatic source address learning and aging
| P/N | Description |
| TH-6F0005 | Unmanaged Industrial Switch, 5×10/100M RJ45 Port |
| TH-6F0008 | Unmanaged Industrial Switch, 8×10/100M RJ45 Port |
| TH-6F0016 | Unmanaged Industrial Switch, 16×10/100M RJ45 Port |
| TH-6F0104 | Unmanaged Industrial Switch, 1x1000Mbps SFP Port, 4×10/100M RJ45 Port |
| TH-6F0108 | Unmanaged Industrial Switch, 1x1000Mbps SFP Port, 8×10/100M RJ45 Port |
| TH-6F0204 | Unmanaged Industrial Switch, 2x1000Mbps SFP Port, 4×10/100M RJ45 Port |
| TH-6F0208 | Unmanaged Industrial Switch, 2x1000Mbps SFP Port, 8×10/100M RJ45 Port |
| TH-6F0408 | Unmanaged Industrial Switch, 4x1000Mbps SFP Port, 8×10/100M RJ45 Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, OPT, NMC, ALM |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Tree Topology | Support |
| Layer 2 Switching | |
| Switching Capacity | 10Gbps/26Gbps/32Gbps/14Gbps/36Gbps |
| Packet Forwarding Rate | 7.44Mpps/19.34Mpps/23.8Mpps/10.416Mpps/26.78Mpps |
| MAC Address Table | 8K/16K |
| Buffer | 1M/2M/12M |
| Forwarding Delay | <5us/<10us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| Port Isolation | Support |
| DIP Switch | |
| 1 I/R | Port Isolation |
| 2 VLAN | VLAN |
| 3 Q/I | QoS |
| 4 F/P | Flow Control |
| Environment | |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Power Consumption | <6w/<10w |
| Mechanical Dimensions | |

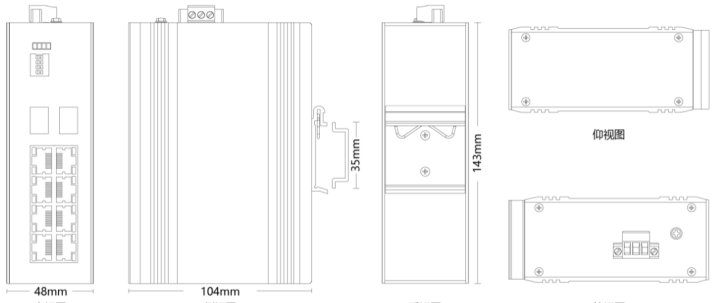

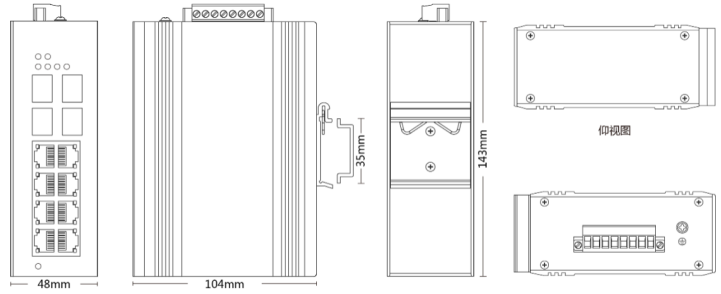

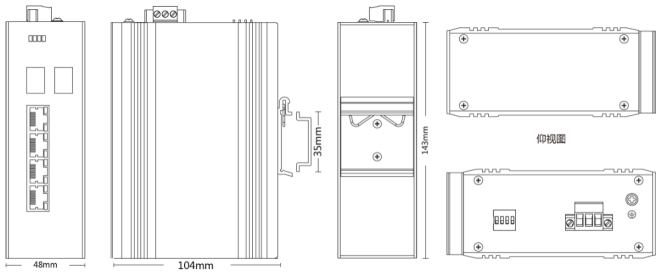

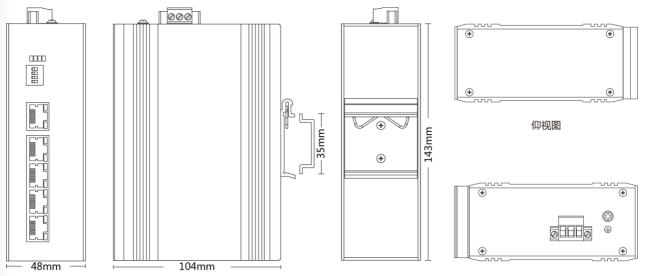

| Product Size | 143*104*48mm |
| Installation Method | Din-Rail |
| Net Weight | 0.6KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
| DIP | IEC 61000-4-11 Level 3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |
