TH-6G0416 Industrial Switch 4xGigabit SFP, 16×10/100/1000Base-T

Model Number:TH-6G0416

Brand: Todahika

  •  CSMA/CD protocol
  •  DC12V-58V input

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-6G0416 Industrial Ethernet Switch a high-performance, compact and reliable network switch designed for industrial applications with 4x Gigabit SFP and 16x 10/100/1000Base-T Ethernet ports. It is constructed with an IP40-rated metal case and has a wide operating temperature range of -40 to 75, making it ideal for use in harsh industrial environments. supports a range of advanced features such as Quality of Service (QoS), broadcast storm protection, Watchdog, and VLAN configuration. These features ensure reliable and efficient network communication and help to optimize network performance.

What users need are innovative, cost-effective products and high-quality services!As long as we can persevere in doing the above points,I believe you will definitely choose us, trust us.

TH-8G0024M2P

  • Previous:
  • Next:

  • ●  Supports packet size of up to 10K bytes

    ●  Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃

    ●  DC12V-58V input

    ●  CSMA/CD protocol

    ●  Automatic source address learning and aging

    ● One of the key features of the XYZ Network Switch is its automatic MDI/MDI-X detection and negotiation. This means you no longer need to worry about using the correct cables or configuring switches manually. The switch intelligently detects and negotiates the correct mode for the 10/100/1000Base-TX RJ-45 port, whether it is half-duplex or full-duplex. Not only does this save time, it also ensures optimal performance and avoids potential network errors.

    P/N Description
    TH-6G0416 Unmanaged Industrial Switch4x1000Mbps SFP Port, 16×10/100/1000M RJ45 Port
    TH-6G0416P Unmanaged Industrial PoE Switch4x1000Mbps SFP Port, 16×10/100/1000M RJ45 Port PoE
    Provider Mode Ports
    Fixed Port 16*10/100/1000Mbps Ethernet Port, 4*1000Mbps SFP Port
    Power Interface Phoenix terminal, Dual power input
    LED Indicators PWR, Link/ACT LED
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Mono-mode Optical Fiber 20/40/60/80/100KM
    Multi-mode Optical Fiber 550m
    Network Topology
    Ring Topology Not support
    Star Topology Support
    Bus Topology Support
    Tree Topology Support
    Layer 2 Switching
    Switching Capacity                        68Gbps
    Packet Forwarding Rate                   50.59Mpps
    MAC Address Table                 16K
    Buffer                                    12M
    Forwarding Delay                          <10us
    MDX/MIDX                 Support
    Jumbo Frame                              Support 10K bytes
    Environment
    Operating Temperature                   -40~+75
    Storage Temperature               -40~+85
    Relative Humidity                          10%~95% (non-condensing)
    Thermal Methods                         Fanless design, natural heat dissipation
    MTBF                                                    100,000 hours
    Power Consumption <26w

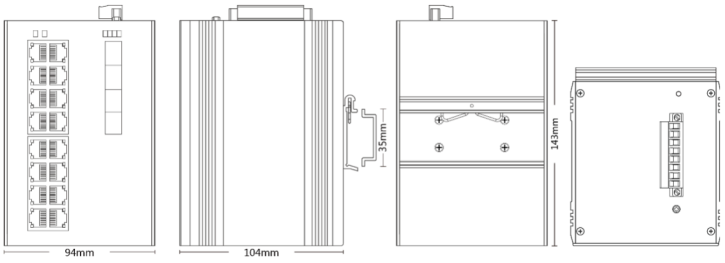

    Mechanical Dimensions
    Product Size                                    94*104*143mm
    Installation Method                      Din-Rail
    Net Weight                                         1.2KGs
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (6KV/4KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level 4 (30A/m)
    DIP IEC 61000-4-11 Level 3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Certificate
    Security Certificate CE, FCC, RoHS
