TH-6G0808 Industrial Switch 8xGigabit SFP, 8×10/100/1000Base-T

Model Number:TH-6G0808

Brand: Todahika

  • CSMA/CD protocol
  • Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-6G0808 Industrial Ethernet Switch, is fan-less and energy-saving design, provide reliable power solution for SMBs deploying Power over Ethernet networks. It provides 8x Gigabit SFP and 8x 10/100/1000Base-T Ethernet ports, making it ideal for applications that require high-speed data transfer rates and flexible connectivity options.

It is small and offers high reliability and security to guarantee the continuous industrial operation in harsh environments from -40℃~ +75℃, It is an excellent solution for industrial networks that require advanced network switches with high-speed data transmission rates, flexible connectivity options, and reliable performance even under challenging environmental conditions.

TH-8G0024M2P

  • Previous:
  • Next:

  • ● Introducing our newest product: IEEE 802.3 and IEEE 802.3u compliant network switches.

    ● The first part of our product description highlights its broad compatibility with IEEE 802.3 and IEEE 802.3u standards. This ensures seamless integration into your network system.

    ● The second part focuses on the automatic MDI/MDI-X detection and negotiation feature, which makes the switch suitable for both half-duplex and full-duplex modes. It supports 10/100/1000Base-TX RJ-45 ports for optimal connectivity options.

    ● Continuing with the third section, we emphasize the store-and-forward mode of switches. This feature ensures efficient wire-speed filtering and forwarding rates, helping data to be transmitted smoothly in the network.

    ● Section IV demonstrates impressive support for packet sizes up to 10K bytes. This allows the transfer of large files and ensures smooth data processing, even in demanding situations.

    ● Our fifth section focuses on the physical attributes that make this switch a reliable and durable choice. With its robust IP40 protection, fanless design, and ability to withstand extreme temperatures from -40°C to +75°C, it’s ideal for a variety of environments.





    P/N Description
    TH-6G0808 Unmanaged Industrial Switch8x1000Mbps SFP Port, 8×10/100/1000M RJ45 Port
    TH-6G0808P Unmanaged Industrial PoE Switch8x1000Mbps SFP Port, 8×10/100/1000M RJ45 Port PoE
    Provider Mode Ports
    Fixed Port 8*10/100/1000Mbps Ethernet Port, 8*1000Mbps SFP Port
    Power Interface Phoenix terminal, Dual power input
    LED Indicators PWR, Link/ACT LED
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Mono-mode Optical Fiber 20/40/60/80/100KM
    Multi-mode Optical Fiber 550m
    Network Topology
    Ring Topology Not support
    Star Topology Support
    Bus Topology Support
    Tree Topology Support
    Layer 2 Switching
    Switching Capacity                        54Gbps
    Packet Forwarding Rate                   23.8Mpps
    MAC Address Table                 8K
    Buffer                                    4M
    Forwarding Delay                          <10us
    MDX/MIDX                 Support
    Jumbo Frame                              Support 10K bytes
    Environment
    Operating Temperature                   -40~+75
    Storage Temperature               -40~+85
    Relative Humidity                          10%~95% (non-condensing)
    Thermal Methods                         Fanless design, natural heat dissipation
    MTBF                                                    100,000 hours
    Power Consumption <15w

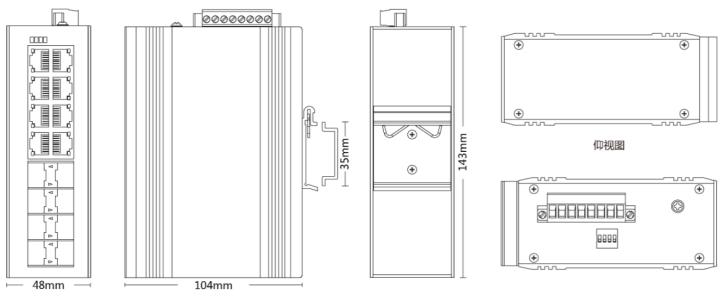

    Mechanical Dimensions
    Product Size                                    143*104*48mm
    Installation Method                      Din-Rail
    Net Weight                                         0.75KGs
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (6KV/4KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level 4 (30A/m)
    DIP IEC 61000-4-11 Level 3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Certificate
    Security Certificate CE, FCC, RoHS
