TH-810G Series Industrial Rack-mount Managed Ethernet POE Switch

Model Number:TH-810G-P Series

Brand: Todahika

  • Support 6KV surge protection and ESD Air-15kV, Contact-8kV Protection
  • Shell IP40 protection level, fan-less design

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-810G-P Series is 10Gigabit high-performance Management Industrial Rack-mount PoE Ethernet Switch.10 Gigabit Ethernet switches are a powerful and versatile networking tool that can be used in a wide range of applications.

The switch is equipped with multiple 10 Gigabit SFP+ ports, which can support high-speed data transfer rates of up to 10Gbps. It also features Power over Ethernet (PoE) technology, which allows it to deliver power to connected devices such as IP cameras, access points, and other PoE-enabled devices. This eliminates the need for separate power supplies, reducing clutter and simplifying installation.

TH-8G0024M2P

  • Previous:
  • Next:

  • ● Redundantpower DC48-58V input

    ● Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6/Web/SNMP/Telnet/TFTP management

    ● Support 6KV surge protection and ESD Air-15kV, Contact-8kV Protection

    ● Operate temperature -40℃ ~ +75℃

    ● Shell IP40 protection level, fan-less design

    P/N Fixed Port
    TH-810G4C0816M2P 16×10/100/1000 Base-T PoE, 8xGE Combo, 4x1G/2.5G/10G Base-X SFP+
    TH-810G0424M2P 24×10/100/1000 Base-T PoE, 4x1G/2.5G/10G Base-X SFP+
    TH-810G0448M2P 48 x 10/100/1000 Base-T PoE, 4 x 1G/2.5G/10G Base-X SFP+
    Provider Mode Ports
    Description Industrial Managed Rack-mount Ethernet Switch
    Management Port Support Console
    Power Interface Phoenix terminal, redundant dual power supply
    LED Indicators PWR, Link/ACT LED
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Monomode Optical Fiber 20/40/60/80/100KM
    Multimode Optical Fiber 550m
    PoE Support
    PoE PoE Port: 1-24/48

    PoE Protocol: 802.3af(15.4w/port), 802.3at(30w/port)

    Pin Assignment: 12+, 36PoE

    Management: Support

    Electrical Specifications
    Input Voltage Dual Power DC48-58V input
    Total Power Consumption PoE <396W<400W
    Layer 2 Switching
    Switching Capacity 160G/336G
    Packet Forwarding Rate 95.23Mpps/144Mpps
    MAC Address Table 16K
    Buffer 12M
    Forwarding Delay <10us
    MDX/MIDX Support
    Flow Control Support
    Jumbo Frame Support 10Kbytes
    Port Aggregation Support GE port, 2.5GE

    Support static and dynamic aggregation

    Port Features Support IEEE802.3x flow control, Port traffic statistics, port isolation

    Support network storm suppression based on port bandwidth percentage

    VLAN Support 4K
    VLAN Classification Mac Based VLAN

    IP Based VLAN

    Protocol Based VLAN

    QinQ Basic QinQ (Port-based QinQ)

    Flexible Q in Q(VLAN-based QinQ)

    QinQ(Flow-based QinQ)

    Port Mirroring Many to one (Port Mirroring)
    Spanning Tree Support STP, RSTP, MSTP
    DHCP DHCP Client

    DHCP Snooping

    Multicast IGMP snooping
    ACL Support ACL 500

    Support IP standard ACL

    Support MAC expand ACL

    Support IP expand ACL

    QoS QoS Class, Remarking

    Support SP, WRR queue scheduling

    Ingress Port-based Rate-limit

    Egress Port-based Rate-limit

    Policy-based QoS

    Security Support Dot1x, port authentication, MAC authentication

    and RADIUS service

    Support port-security

    Support ip source guard, IP/Port/MAC binding

    Support arp-check and ARP packet filtering for illegal users

    Support port isolation

    Management and Maintenance Support LLDPSupport user management and login authentication

    Support SNMPV1/V2C/V3

    Support web management, HTTP1.1, HTTPS

    Support Syslog and alarm grading

    Support RMON (Remote Monitoring) alarm, event and history record

    Support NTP

    Support temperature monitoring

    Support Ping, Tracert

    Support optical transceiver DDM function

    Support TFTP Client

    Support Telnet Server

    Support SSH Server

    Support IPv6 Management

    Support TFTP, WEB upgrading

    Environment
    Operating Temperature -40℃~+70℃
    Storage Temperature -40℃~+85℃
    Relative Humidity 5%~95% (non-condensing)
    Thermal Methods Fan-less design, natural heat dissipation
    MTBF 100,000 hours

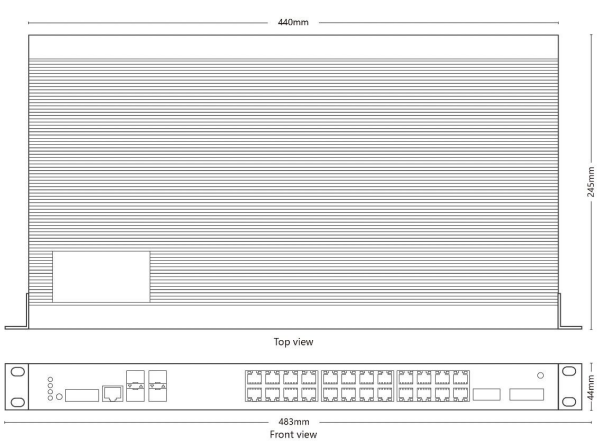

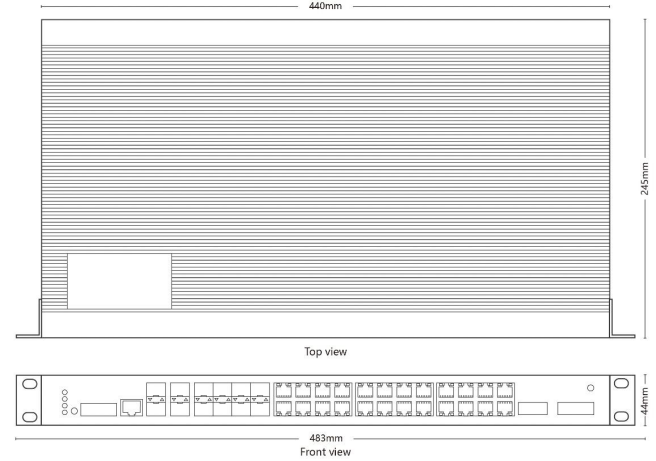

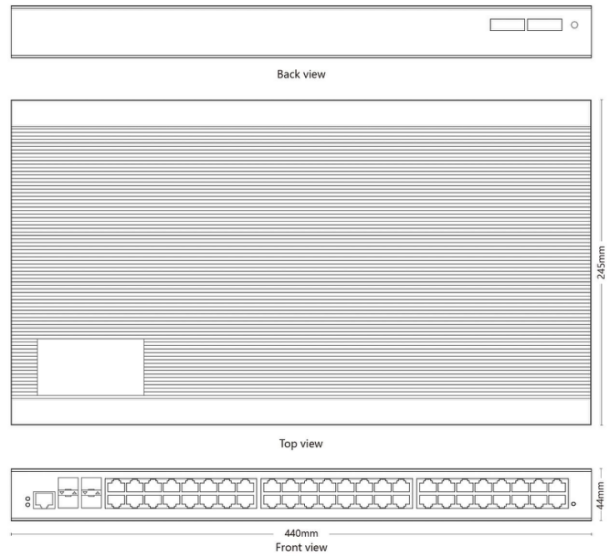

    Mechanical Dimensions
    Product Size 440*245*44mm
    Installation Method Rack-mount
    Net Weight 3.65KGs
    Packaging Info 5PCS/CTN, Carton Dim. 51*58.5*36.8cm, 24.8KGS/CTN
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (8KV/8KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level4 (30A/m)
    DIP IEC 61000-4-11 Level3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Certificates
    Certificates CE/FCC/RoHS/UKCA
