TH-8G-P Series Industrial Rack-mount Managed Ethernet POE Switch

Model Number:TH-8G-P Series

Brand: Todahika

  • Operate temperature -40℃ ~ +75℃
  • Shell IP40 protection level, fan-less design

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-8G-P Series is Gigabit Management Industrial Rack-mount PoE Ethernet Switch. The switch is a powerful networking device designed for industrial use. It provides high-speed data transmission and efficient power delivery to connected devices, making it ideal for use in factories, warehouses, and other industrial settings. is equipped with multiple Gigabit Ethernet ports, which can support high-speed data transfer rates of up to 1000Mbps.

It also features Power over Ethernet (PoE) technology, which allows it to deliver power to connected devices such as IP cameras, access points, and other PoE-enabled devices. This eliminates the need for separate power supplies, reducing clutter and simplifying installation.

TH-8G0024M2P

  • Previous:
  • Next:

  • ●  Introducing our newest product, the TH-8G-P network switch, designed to meet the growing demands of modern network management. Support Layer 2 management functions such as VLAN, VLAN classification, QinQ, STP, RSTP, MSTP, port mirroring, DHCP multicast, ACL, IGMP, QoS, LLDP, 802.1X, Dying Gasp, SFP DDM, IPV6, Web, SNMP Telnet, TFTP management, the switch ensures maximum control and customization of your network.

    ●  One of the key features of this switch is its ability to handle redundant power supply DC48-58V input, making it highly efficient and adaptable to different power supplies. Whether your network requires higher power input or lower voltage, this switch has you covered.

    ●  Additionally, the RedundantpowerDC48-58V switch provides top-notch protection for your network. Equipped with 6KV Surge Protection and ESD Air-15kV, Contact 8kV Protection to ensure your network is safe and secure from any power interruption or surge.

    P/N Fixed Port
    TH-8G0024M2P 24 x 10/100/1000M RJ45 Port PoE
    TH-8G0224M2P 24 x 10/100/1000M RJ45 Port, Uplink 2 x Gigabit SFP
    TH-8G0424M2P 24 x 10/100/1000M RJ45 Port, Uplink 4 x Gigabit SFP
    TH-8G0448M2P 48 x 10/100/1000M RJ45 Port, Uplink 4 x Gigabit SFP
    Provider Mode Ports
    Management Port Support Console
    Power Interface Phoenix terminal, redundant dual power supply
    LED Indicators PWR, Link/ACT LED
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Monomode Optical Fiber 20/40/60/80/100KM
    Multimode Optical Fiber 550m
    PoE Support
    PoE PoE Port: 1-24/48

    PoE Protocol: 802.3af(15.4w/port), 802.3at(30w/port)

    Pin Assignment: 12+, 36PoE

    Management: Support

    Electrical Specifications
    Input Voltage Dual Power DC48-58V input
    Total Power Consumption PoE <396W<400W
    Layer 2 Switching
    Switching Capacity 160G/336G
    Packet Forwarding Rate 95.23Mpps/144Mpps
    MAC Address Table 16K
    Buffer 12M
    Forwarding Delay <10us
    MDX/MIDX Support
    Flow Control Support
    Jumbo Frame Support 10Kbytes
    Port Aggregation Support GE port, 2.5GE

    Support static and dynamic aggregation

    Port Features Support IEEE802.3x flow control, Port traffic statistics, port isolation

    Support network storm suppression based on port bandwidth percentage

    VLAN Support 4K
    VLAN Classification Mac Based VLAN

    IP Based VLAN

    Protocol Based VLAN

    QinQ Basic QinQ (Port-based QinQ)

    Flexible Q in Q(VLAN-based QinQ)

    QinQ(Flow-based QinQ)

    Port Mirroring Many to one (Port Mirroring)
    Spanning Tree Support STP, RSTP, MSTP
    DHCP DHCP Client

    DHCP Snooping

    Multicast IGMP snooping
    ACL Support ACL 500

    Support IP standard ACL

    Support MAC expand ACL

    Support IP expand ACL

    QoS QoS Class, Remarking

    Support SP, WRR queue scheduling

    Ingress Port-based Rate-limit

    Egress Port-based Rate-limit

    Policy-based QoS

    Security Support Dot1x, port authentication, MAC authentication

    and RADIUS service

    Support port-security

    Support ip source guard, IP/Port/MAC binding

    Support arp-check and ARP packet filtering for illegal users

    Support port isolation

    Management and Maintenance Support LLDPSupport user management and login authentication

    Support SNMPV1/V2C/V3

    Support web management, HTTP1.1, HTTPS

    Support Syslog and alarm grading

    Support RMON (Remote Monitoring) alarm, event and history record

    Support NTP

    Support temperature monitoring

    Support Ping, Tracert

    Support optical transceiver DDM function

    Support TFTP Client

    Support Telnet Server

    Support SSH Server

    Support IPv6 Management

    Support TFTP, WEB upgrading

    Environment
    Operating Temperature -40℃~+70℃
    Storage Temperature -40℃~+85℃
    Relative Humidity 5%~95% (non-condensing)
    Thermal Methods Fan-less design, natural heat dissipation
    MTBF 100,000 hours

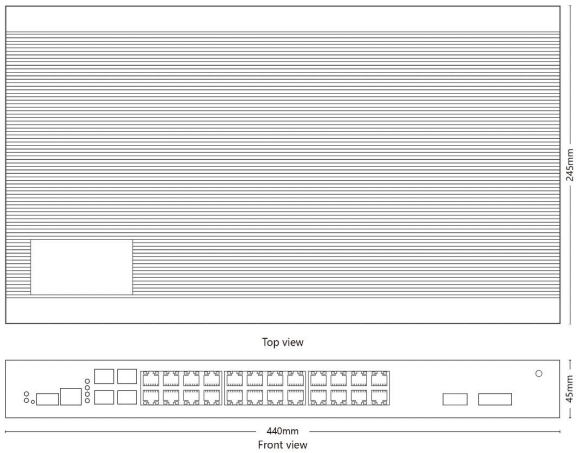

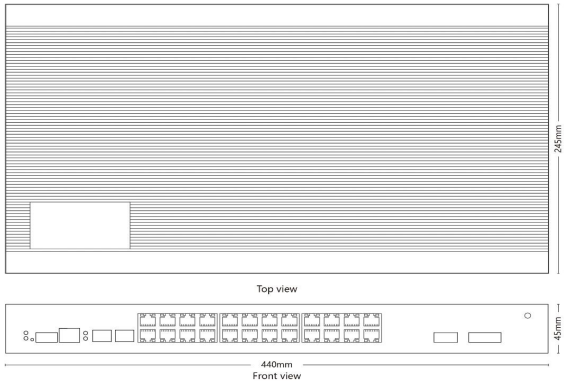

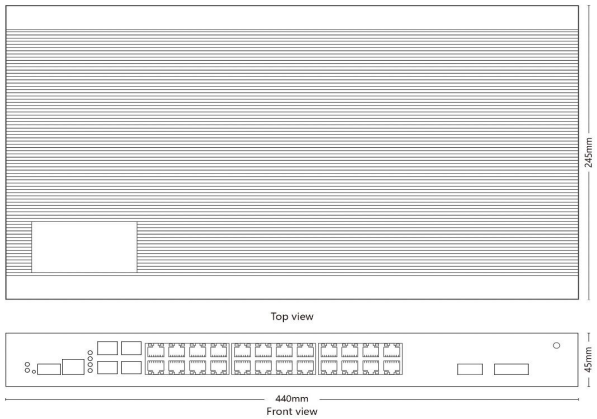

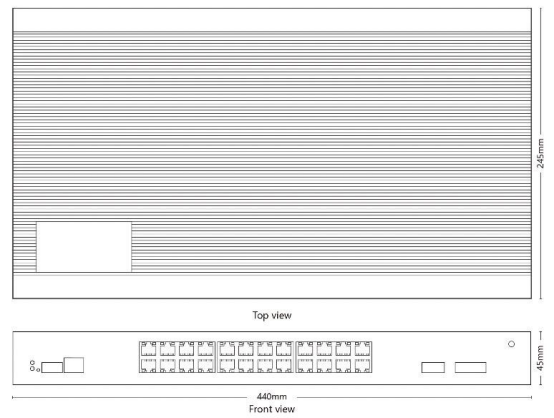

    Mechanical Dimensions
    Product Size 440*245*44mm
    Installation Method Rack-mount
    Net Weight 3.65KGs
    Packaging Info 5PCS/CTN, Carton Dim. 51*58.5*36.8cm, 24.8KGS/CTN
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (8KV/8KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level4 (30A/m)
    DIP IEC 61000-4-11 Level3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Certificates
    Certificates CE/FCC/RoHS/UKCA
