TH-8G Series Industrial Rack-mount Managed Ethernet Switch

Model Number:TH-8G Series

Brand: Todahika

  • Redundant power DC12-58V and AC100~240V input
  • Operate temperature -40℃ ~ +75℃

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-8G Series is Gigabit Management Industrial Rack-mount Ethernet Switch. The  switch is designed with a fan-less cooling system, which enables it to operate in a wide range of working environments with temperatures ranging from -40℃ to +75℃. With a high protection level and advanced technologies such as lightning protection, this switch boasts excellent industrial quality. It also features integrated switching and security protocols which enhance its stability and security. Additionally, it supports public Ethernet multi-ring protection technology (ERPS recovery time ≤ 15ms) which greatly enhances the networking flexibility and reliability of industrial networks.

TH-8G0024M2P

  • Previous:
  • Next:

  • ●    Redundant power DC12-58V and AC100~240V input.

    ●    Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/ DHCP Multicast/ ACL/IGMP /QoS /LLDP /802.1X /Dying Gasp /SFP DDM /IPV6 /Web /SNMP /Telnet /TFTP management.

    ●    Support 6KV surge protection and ESD Air-15kV, Contact-8kV Protection.

    ●    Operate temperature -40℃ ~ +75℃.

    ●    Shell IP40 protection level, fan-less design.

    P/N Fixed Port
    TH-8G8C2000M2 8x1000M Combo(RJ45/SFP), 16x1G SFP, 4x1G/2.5G SFP
    TH-8G0024M2 24 x 10/100/1000M RJ45 Port
    TH-8G0224M2 24 x 10/100/1000M RJ45 Port, Uplink 2 x Gigabit SFP
    TH-8G0424M2 24 x 10/100/1000M RJ45 Port, Uplink 4 x Gigabit SFP
    TH-8G0448M2 48 x 10/100/1000M RJ45 Port, Uplink 4 x Gigabit SFP
    Provider Mode Ports
    Management Port Support Console
    Power Interface Phoenix terminal, redundant dual power supply
    LED Indicators PWR, Link/ACT LED
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Monomode Optical Fiber 20/40/60/80/100KM
    Multimode Optical Fiber 550m
    Electrical Specifications
    Input Voltage Dual Power DC12-58V, AC100~240V 50/60HZ input
    Total Power Consumption

    <25W /<36W/<35W

    Layer 2 Switching
    Switching Capacity

    68G/160G/336G

    Packet Forwarding Rate

    50.59Mpps /95.23Mpps/87Mpps

    MAC Address Table 16K
    Buffer 12M
    Forwarding Delay <10us
    MDX/MIDX Support
    Flow Control Support
    Jumbo Frame Support 10Kbytes
    Port Aggregation Support GE port, 2.5GESupport static and dynamic aggregation
    Port Features Support IEEE802.3x flow control, Port traffic statistics, port isolationSupport network storm suppression based on port bandwidth percentage
    VLAN Support 4K
    VLAN Classification Mac Based VLANIP Based VLAN

    Protocol Based VLAN

    QinQ Basic QinQ (Port-based QinQ)Flexible Q in Q(VLAN-based QinQ)

    QinQ(Flow-based QinQ)

    Port Mirroring Many to one (Port Mirroring)
    Spanning Tree Support STP, RSTP, MSTP
    DHCP DHCP ClientDHCP Snooping
    Multicast IGMP snooping
    ACL Support ACL 500Support IP standard ACL

    Support MAC expand ACL

    Support IP expand ACL

    QoS QoS Class, RemarkingSupport SP, WRR queue scheduling

    Ingress Port-based Rate-limit

    Egress Port-based Rate-limit

    Policy-based QoS

    Security Support Dot1x, port authentication, MAC authenticationand RADIUS service

    Support port-security

    Support ip source guard, IP/Port/MAC binding

    Support arp-check and ARP packet filtering for illegal users

    Support port isolation

    Management and Maintenance Support LLDPSupport user management and login authenticationSupport SNMPV1/V2C/V3

    Support web management, HTTP1.1, HTTPS

    Support Syslog and alarm grading

    Support RMON (Remote Monitoring) alarm, event and history record

    Support NTP

    Support temperature monitoring

    Support Ping, Tracert

    Support optical transceiver DDM function

    Support TFTP Client

    Support Telnet Server

    Support SSH Server

    Support IPv6 Management

    Support TFTP, WEB upgrading

    Environment
    Operating Temperature -40℃~+70℃
    Storage Temperature -40℃~+85℃
    Relative Humidity 5%~95% (non-condensing)
    Thermal Methods Fan-less design, natural heat dissipation
    MTBF 100,000 hours
    Mechanical Dimensions
    Product Size 440*245*44mm
    Installation Method Rack-mount
    Net Weight 3.6KGs
    Packaging Info 5PCS/CTN, Carton Dim. 51*58.5*36.8cm, 24.8KGS/CTN
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (8KV/8KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level4 (30A/m)
    DIP IEC 61000-4-11 Level3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Certificates
    Certificates CE/FCC/RoHS/UKCA

    TH-8G8C2000M2

    TH-8G8C2000M2

    TH-8G0024M2

    TH-8G0024M2

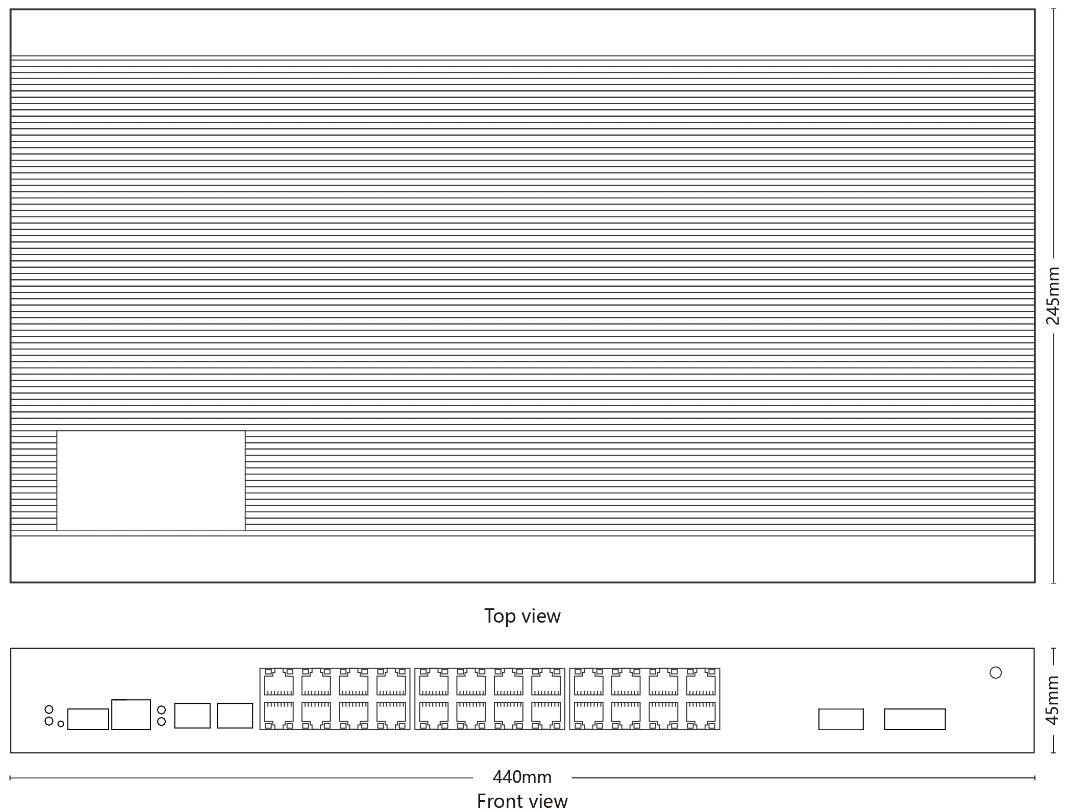

    TH-8G0224M2

    TH-8G0224M2

    TH-8G0424M2

    TH-8G0424M2

    TH-8G0448M2

    TH-8G0448M2
