TH-G310-8E2SFP Industrial Ethernet Switch
The TH-G310-8E2SFP is an advanced industrial Power over Ethernet switch that brings superior connectivity to critical applications. It comes with a total of 10 ports, including 8-Port 10/100/1000Bas-TX POE RJ45 ports and 2-Port 100/1000 Base-FX Fast SFP, providing stable and reliable Ethernet transmission.
Built with high-quality materials and engineering, the TH-G310-8E2SFP guarantees reliable performance and long-term durability. It also features redundant dual power supply inputs (DC), ensuring that critical applications maintain always-on connections even in the event of power failures.
The TH-G310-8E2SFP operates flawlessly within standard temperature ranges, from -40 to 75°C, and is designed to withstand harsh environments. It supports DIN Rail and Wall Mounting, with IP40 protection for added durability.
Overall, the TH-G310-8E2SFP is the ideal choice for demanding industrial applications that require high-speed Ethernet transmission, seamless reliability, and superior quality design.
● 8×10/ 100/ 1000Base-TX POE RJ45 ports, 2×100/ 1000Base-FX Fast SFP ports
● Support 4Mbit packet buffer
● Support 10K bytes jumbo frame
● Support IEEE802.3az energy-efficient Ethernet technology
● -40~75°C operation temperature for harsh environment
● Power input polarity protection design
● Aluminum case, no fan design
● Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-G310-2SFP | Industrial unmanaged switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base- FX SFP ports dual input voltage 9~56VDC |
| TH-G310-8E2FP | Industrial unmanaged switch with 8×10/100/1000Base-TX POE RJ45 ports and 2×100/1000Base-FX SFP ports dual input voltage 48~56VDC |
| TH-G310-2SFP-H | Industrial unmanaged switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base- FX SFP ports single input voltage 100~240VAC |
| Ethernet Interface | ||
| Ports | 8×10/ 100/ 1000BASE-TX POE RJ45 sports , 2x1000BASE-X SFP | |
| Power input terminal | Six-pin terminal with 5.08mm pitch | |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control |
|
| Packet Buffer Size | 4M | |
| Maximum Packet Length | 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time < 7 μs | |
| Backplane bandwidth | 24Gbps | |
| POE (optional) | ||
| POE standards | IEEE 802.3af/IEEE 802.3at POE | |
| POE Consumption | max 30W per port | |
| Power | ||
| Power Input | Dual power input 9-56VDC for non- POE and 48~56VDC for POE | |
| Power consumption | Full Load<15W ( non- POE); Full Load<255W (POE) | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

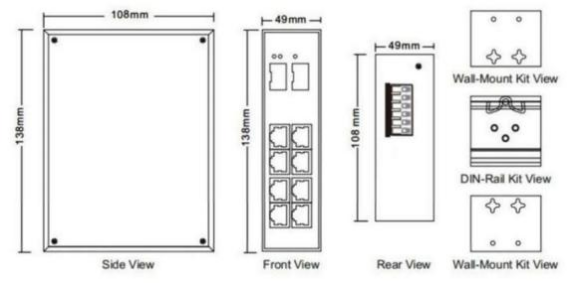

| Dimensions | 138mm x 108mm x 49mm (L x W x H) | |
| Weight | 680g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40C~75C (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40C~85C (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Certification Standard | FCC Part15 Class A
CE-EMC/LVD ROSH IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) IEC 60068-2-32 (Free fall) |
IEC 61000-4-2 ( ESD)： Level 4
IEC 61000-4-3 ( RS)： Level 4 IEC 61000-4-2 ( EFT)： Level 4 IEC 61000-4-2 ( Surge)： Level 4 IEC 61000-4-2 ( CS)： Level 3 IEC 61000-4-2 ( PFMP)： Level 5 |
