TH-G510-2S2SFP Industrial Ethernet Switch
TH-G510-2S2SFP is a new generation Industrial Managed Ethernet Switch with 8-Port 10/100/1000Bas-TX, 2-Port 100/1000 Base-FX Fast SFP ports and 2 RS485/232/433Series ports that provide easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces.
It supports both application and serial operation modes for alarm or IP address connection which saves the administrator's time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well.
● 8×10/100/1000Base-TX RJ45 ports, 2×100/1000Base-FX Fast SFP ports and 2x RS485/232/433 ports
● Support 4Mbit packet buffer
● Support 10K bytes jumbo frame
● Support IEEE802.3az energy-efficient Ethernet technology
● Support IEEE 802.3D/W/S standard STP/RSTP/MSTP protocol
● 40~75°C operation temperature for harsh environment
● Support ITU G.8032 standard ERPS Redundant Ring protocol
● Power input polarity protection design
● Aluminum case, no fan design
● Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-G510-2S2SFP | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports, 2×100/1000Base-FX SFP ports and 2x RS485/232/433 ports dual input voltage 9～56VDC |
| TH-G510-8E2S42FP | Industrial managed switch with 8×10/100/1000Base-TX POE RJ45 ports, 2×100/1000Base-FX SFP ports and 2x RS485/232/433 ports dual input voltage 48～56VDC |
| TH-G510-2S2SFP-H | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports, 2×100/1000Base-FX SFP ports and 2x RS485/232/433 ports single input voltage 100～240VAC |
| Ethernet Interface | ||
| Ports | 8×10/100/1000BASE-TX RJ45, 2x1000BASE-X SFP, 2x RS485/232/433 ports | |
| Power input terminal | Six-pin terminal with 5.08mm pitch | |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
|
| Packet Buffer Size | 4M | |
| Maximum Packet Length | 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time < 7μs | |
| Backplane bandwidth | 24Gbps | |
| POE（optional） | ||
| POE standards | IEEE 802.3af/IEEE 802.3at POE | |
| POE Consumption | max 30W per port | |
| Power | ||
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE | |
| Power consumption | Full Load<15W （non-POE); Full Load<255W （POE) | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

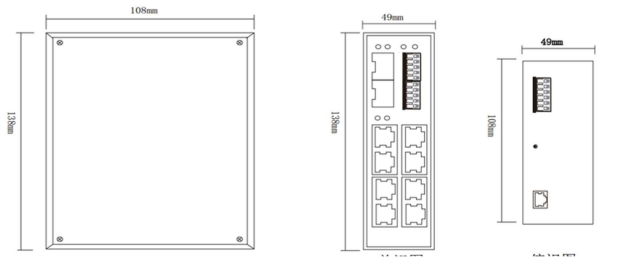

| Dimensions | 138mm x 108mm x 49mm (L x W x H) | |
| Weight | 680g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Serial port function | 2x RS485/232/433 ports | |
| Serial port description | RS-232 signals: a: TXD, b: RXD, c: Na, d: Na, e:GND
RS-422 signals: a: T+, b: T-, c: R+, d: R-, e:GND RS-485 signals: a: Na, b: Na, c: D+, d: D-, e:GND Baud rate: 2400-115200bps Interface form: 5-position terminal block Load capacity: RS-485/422 side supports 128-point polling environment Direction control: RS-485 adopts data flow direction automatic control technology RS-232 interface protection: electrostatic protection 15KV RS-485/422 interface protection: isolation voltage 2KV, electrostatic protection 15KV
|
|
| Certification Standard | FCC Part15 Class A
CE-EMC/LVD ROSH IEC 60068-2-27（Shock） IEC 60068-2-6（Vibration） IEC 60068-2-32（Free fall） |
IEC 61000-4-2（ ESD）： Level 4
IEC 61000-4-3（ RS）： Level 4 IEC 61000-4-2（ EFT）： Level 4 IEC 61000-4-2（ Surge）： Level 4 IEC 61000-4-2（ CS）： Level 3 IEC 61000-4-2（ PFMP）： Level 5 |
| Software Function | Redundant Network：support STP/RSTP，ERPS Redundant Ring，recovery time < 20ms | |
| Multicast ：IGMP Snooping V1/V2/V3 | ||
| VLAN：IEEE 802.1Q 4K VLAN，GVRP ,GMRP,QINQ | ||
| Link Aggregation：Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation | ||
| QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | ||
| Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management | ||
| Diagnostic Maintenance: port mirroring, Ping Command | ||
| Alarm management: Relay warning, RMON , SNMP Trap | ||
| Security: DHCP Server/Client，Option 82， support 802.1X，ACL ,support DDOS， | ||
| Software update via HTTP, redundant firmware to avoid upgrade failure | ||
