TH-G510-8E2SFP Industrial Ethernet Switch

Model Number:TH-G510-8E2SFP

Brand: Todahika

  • Support IEEE 802.3D/W/S standard STP/RSTP/MSTP protocol
  • Support 10K bytes jumbo frame

Product Detail

Features

Ordering Information

Specifications

Dimension

Product Tags

Product Description

TH-G510-8E2SFP is a high-performance Industrial Managed PoE Switch that supports both Ethernet and fiber optic connectivity.

It has 8 10/100/1000BASE-TX PoE RJ45 ports and 2 100/1000BASE-X SFP ports, which can be used for long-distance data transmission.

The switch can be powered using dual power inputs and supports IEEE 802.3af/at PoE standards, with a maximum consumption of 30W per port.

It also has a durable aluminum case and can be installed using DIN rail and wall mounting.

It also supports various software functions, including VLAN tagging, QoS, and management via a web interface.

TH-8G0024M2P

  • Previous:
  • Next:

  • ●    8×10/100/1000Base-TX PoE RJ45 ports, 2×100/1000Base-FX Fast SFP ports

    ●    DIP Switch supports RSTP/VLAN/SPEED.

    ●    Support 9K bytes jumbo frame, compatible with various extension protocol

    ●    Support IEEE802.3az energy-efficient Ethernet technology

    ●    Electric 4KV surge protection, easy to use in an outdoor environment

    ●    Power input polarity protection design

    Model Name Description
    TH-G510-2SFP Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-FX SFP ports dual input voltage 956VDC
    TH-G510-8E2SFP Industrial managed switch with 8×10/100/1000Base-TX POE RJ45 ports and 2×100/1000Base-FX SFP ports dual input voltage 4856VDC
    TH-G510-2SFP-H Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-FX SFP ports single input voltage 100240VAC
    Ethernet Interface
    Ports 8×10/100/1000BASE-TX POE RJ45, 2x1000BASE-X SFP
    Power input terminal Six-pin terminal with 5.08mm pitch
    Standards IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFX

    IEEE 802.3ab for 1000BaseT(X)

    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

    IEEE 802.3x for flow control

    IEEE 802.1D2004 for Spanning Tree Protocol

    IEEE 802.1w for Rapid Spanning Tree Protocol

    IEEE 802.1p for Class of Service

    IEEE 802.1Q for VLAN Tagging

    Packet Buffer Size 4M
    Maximum Packet Length 10K
    MAC Address Table 8K
    Transmission Mode Store and Forward (full/half duplex mode)
    Exchange Property Delay time < 7μs
    Backplane bandwidth 24Gbps
    POEoptional
    POE standards IEEE 802.3af/IEEE 802.3at POE
    POE Consumption max 30W per port
    Power
    Power Input Dual power input 9-56VDC for non-POE and 48~56VDC for POE
    Power consumption Full Load<15W (non-POE); Full Load<255W (POE)
    Physical Characteristics
    Housing Aluminum case

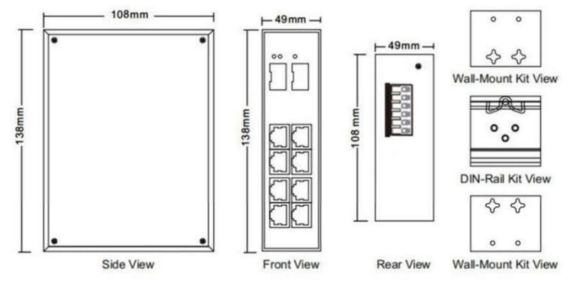

    Dimensions 138mm x 108mm x 49mm (L x W x H)
    Weight 680g
    Installation Mode DIN Rail and Wall Mounting
    Working Environment
    Operating Temperature -40℃~75℃ (-40 to 167 ℉)
    Operating Humidity 5%~90% (non-condensing)
    Storage Temperature -40℃~85℃ (-40 to 185 ℉)
    Warranty
    MTBF 500000 hours
    Defects Liability Period 5 years
    Certification Standard FCC Part15 Class A        IEC 61000-4-2ESD): Level 4

    CE-EMC/LVD                   IEC 61000-4-3RS): Level 4

    ROSH                              IEC 61000-4-2EFT): Level 4

    IEC 60068-2-27(Shock IEC 61000-4-2Surge): Level 4

    IEC 60068-2-6(Vibration IEC 61000-4-2CS): Level 3

    IEC 60068-2-32(Free fall IEC 61000-4-2PFMP): Level 5

    Software Function Redundant Network:support STP/RSTP,ERPS Redundant Ring,recovery time < 20ms
    Multicast :IGMP Snooping V1/V2/V3
    VLAN:IEEE 802.1Q 4K VLAN,GVRP ,GMRP,QINQ
    Link Aggregation:Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation
    QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA
    Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management
    Diagnostic Maintenance: port mirroring, Ping Command
    Alarm management: Relay warning, RMON , SNMP Trap
    Security: DHCP Server/Client,Option 82, support 802.1X,ACL ,support DDOS,
    Software update via HTTP, redundant firmware to avoid upgrade failure
