TH-PF Series 5Port 10/100M Fast Ethernet Switch 8Port 10/100M Fast Ethernet Switch
TH- PF Series is a desktop plastic case 5/8Port 10/ 100M Fast Ethernet.
Switch, adopts storage and forwarding, fanless design, support power indicator and network interface indicator. Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.
● Switching capacity: 1G/1.6G
● MAC address: 2K/4K
● Buffer: 384K/2M
● Jumbo frame: 2K bytes/9K bytes
● Power Input : DC5V
● Working temperature: – 10C ~ 55C
● Shell: Plastic, fanless design
● MTBF: 100000 hours
|
PART NO.
|
Description |
|
LA-SW- PF0005
|
5Port 10/ 100M Fast Ethernet Switch, Plastic Housing |
|
TH-PF0008
|
8Port 10/100M Fast Ethernet Switch, Plastic Housing
|
| Provider Mode Ports | |
| P/N | Fixed Port |
| TH-PF0005 | 5*10/ 100Base-T, RJ45 |
| TH-PF0008 | 8*10/ 100Base-T, RJ45 |
| Power interface | DC terminal |
| LED Indicators | |
| PWR | Power indicator |
| Link/Act | Link status indicator |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0- 100m (CAT5e,CAT6) |
| Electrical Specifications | |
| Input voltage | DC 5V |
| Total Power consumption | Full load ≤3W |
| Layer 2 Switching | |
| Switching capacity | 1G/ 1.6G |
| Packet forwarding rate | 0.744Mpps/ 1.19Mpps |
| MAC address table | 2K/4K |
| Buffer | 384K/2M |
| Forwarding delay | <5us |
| MDX/ MIDX | Support |
| Jumbo Frame | Support 2K bytes |
| Environment | |
| Operating temperature | - 10C~55C |
| Storage temperature | -40C~85C |
| Relative humidity | 10%~95% (non-condensing) |
| Thermal methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |

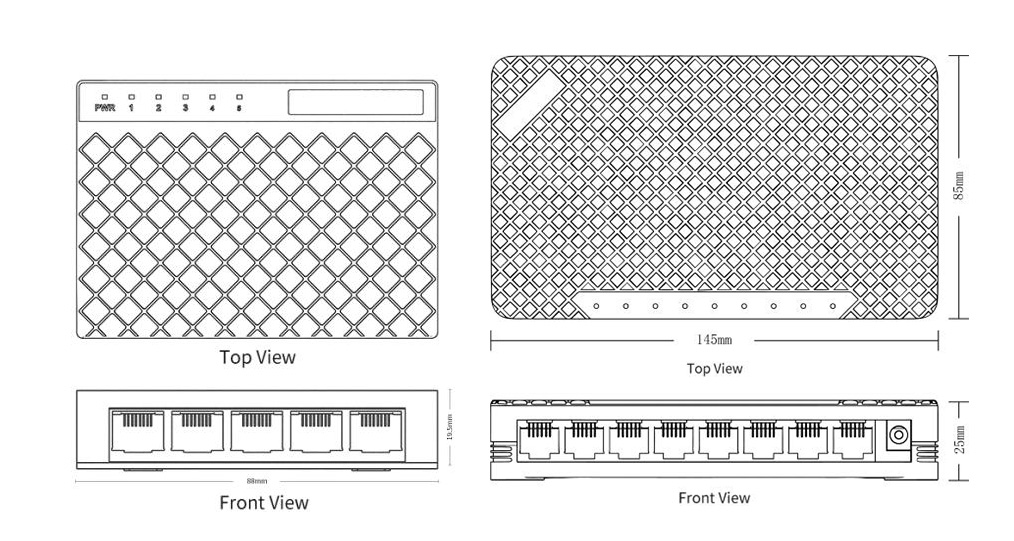

| Mechanical Dimensions | |
| Product size | 88*62.5*19.5mm/145*85*25mm |
| Installation Method | Desktop |
| Net Weight | 0.06KG around/0.14KG around |
| Accessories | |
| Accessories | Device, Qualified Certificate, User Manual, Power Adapter |
